Oscilloscope Exercise





Some oscilloscope records captured during labs in Fall 2001 are included below:

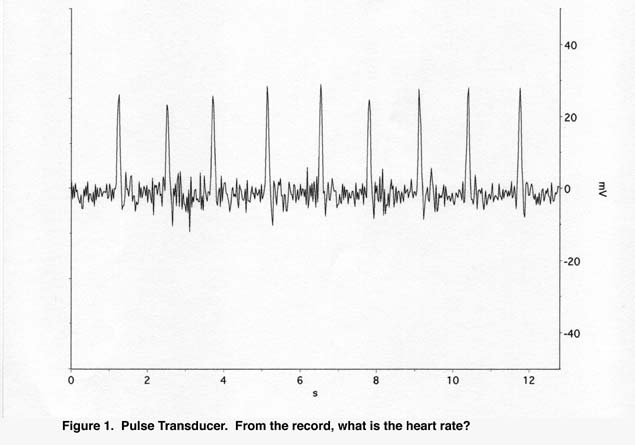

Fig. 1.  Pulse transducer

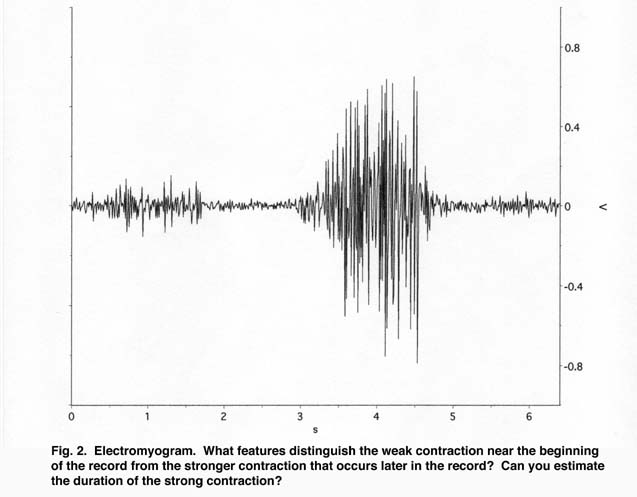

Fig. 2.  Electromyogram

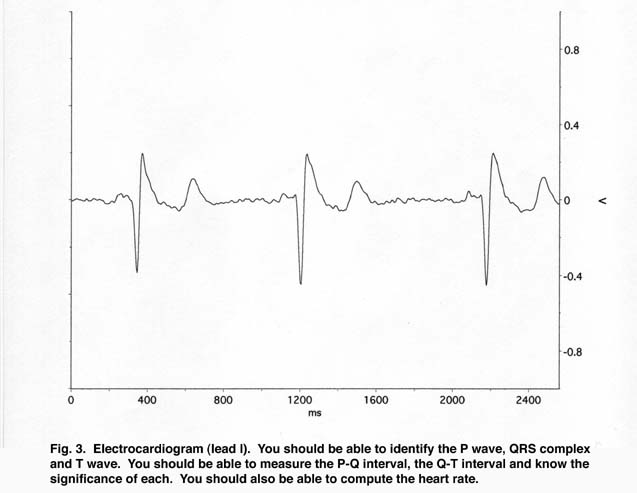

Fig. 3.  Electrocardiogram

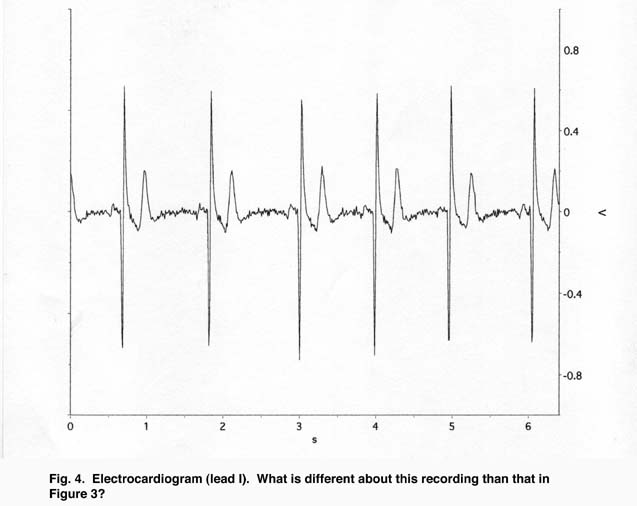

Fig. 4.  Electrocardiogram

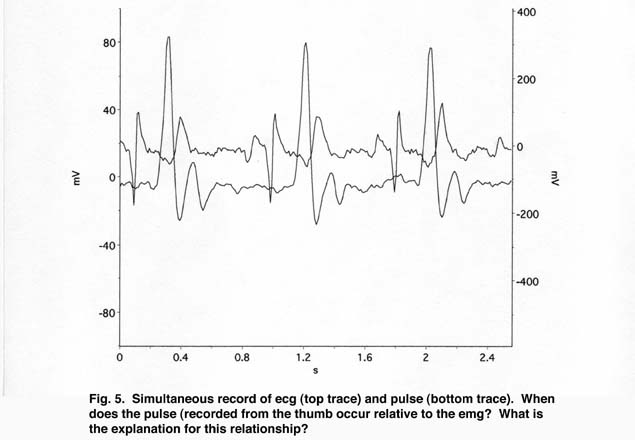

Fig. 5.  Simultaneous record of ecg and pulse







You might be interested in some of the clinical applications of EMG and ECG.   Links to some of the web pages you might want to consult are given below:



EMG:

http://www.casaengineering.com/normal.htm

http://www.spineuniverse.com/conditions/articles/11_22tools.html?lsm01



ECG:

http://www.ecglibrary.com/ecghome.html
